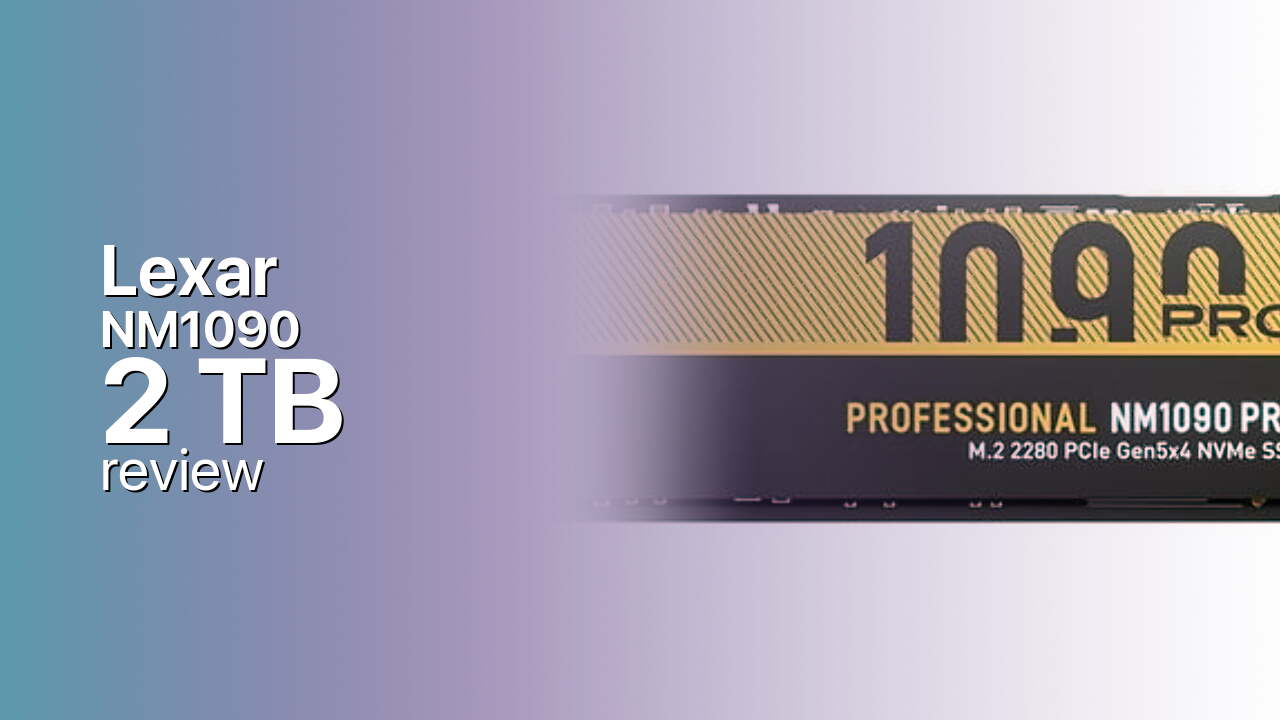

Lexar NM1090 Pro 2TB PCIe 5.0 NVMe SSD Review (2026)
The Lexar NM1090 Pro 2TB is the flagship capacity of Lexar's PCIe 5.0 line, pairing a Silicon Motion SM2508 controller with Micron 232-layer TLC for the family's full 14,000 MB/s sequential read speed.
Controller & Memory
The Lexar NM1090 Pro is the brand's PCIe 5.0 flagship, and reviewers have singled it out as one of the more affordable ways onto the Gen5 platform without giving up the modern controller and NAND. The 2 TB model reviewed here is the sweet spot of a range that runs from 1 TB to 4 TB, and it pairs a Silicon Motion SM2508 8-channel controller with Micron 232-layer 3D TLC NAND and a DRAM cache. That is the same SM2508 plus Micron TLC recipe used by several well-regarded 2025 Gen5 drives, which makes the hardware story well understood even where Lexar's own marketing is thin.
Unlike the slower 1 TB variant, the 2 TB gets the family's full headline speed. Lexar rates it at up to 14,000 MB/s sequential read and 13,000 MB/s sequential write, with around 2.1 million random read and 2.0 million random write IOPS, the highest figures in the lineup. The 2 TB also carries a 1,400 TBW endurance rating, a DRAM cache and a five-year warranty, so it is the variant that gives you everything the platform offers in a genuinely usable capacity for an operating system, a large game library and a working set of creative files.
The drive ships in a standard M.2 2280 form factor, with a heatsink or heatsink-plus-fan option on some SKUs. As a value-leaning Gen5 part it competes with other SM2508 and E26 flagships such as the Crucial T705, the Kioxia Exceria Pro G2 and the Netac NV150HK, all sharing broadly comparable hardware. For buyers who want genuine PCIe 5.0 flagship performance at a competitive price, the NM1090 Pro 2 TB is the model most should pick, combining full headline speed with a practical capacity.
Storage Comparisons:
NM1090 Performance & Benchmarks
Lexar rates the NM1090 Pro 2 TB at up to 14,000 MB/s sequential read and 13,000 MB/s sequential write, with around 2,100,000 random read and 2,000,000 random write IOPS, the highest figures in the lineup. Those numbers are firmly in flagship PCIe 5.0 territory and sit alongside the fastest consumer NVMe drives available. In day-to-day use that sequential headroom shows up when moving large files, game libraries, video projects or virtual machine images, and the 2 TB capacity is large enough to keep plenty of them on the fast tier. For ordinary booting and browsing the gap to a good PCIe 4.0 drive is smaller than the raw numbers suggest, because those workloads are rarely sequential.
Lexar NM1090 2 TB vs M.2 5.0 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 5.0 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Corsair MP700 Pro XT 1 TB: 14,900 MB/s read, 14,200 MB/s write
- Corsair MP700 Pro XT 2 TB: 14,900 MB/s read, 14,500 MB/s write
- Corsair MP700 Pro XT 4 TB: 14,900 MB/s read, 14,400 MB/s write
- Crucial T710 1 TB: 14,900 MB/s read, 13,800 MB/s write
- Lexar NM1090 2 TB (this drive): 14,000 MB/s read, 13,000 MB/s write
Where Gen5 earns its keep is sustained throughput and high-queue-depth random performance, where the SM2508 controller and its roughly 2.1 million random read IOPS hold up well. The SM2508 is one of the more efficient PCIe 5.0 designs, which helps the NM1090 Pro hold its peak performance under sustained loads rather than throttling as aggressively as some early Gen5 parts. Independent reviewers confirm the NM1090 Pro reaches its advertised sequential figures and behaves as a solid, efficient flagship, which is the basis for its affordable-Gen5 reputation. For a 2 TB boot, game and media drive on a PCIe 5.0 platform, it delivers the full flagship Gen5 experience.
Lexar NM1090 vs Competitors
See how the NM1090 stacks up against other M.2 5.0 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
Lexar backs the NM1090 Pro with a five-year limited warranty, and the 2 TB model carries a 1,400 TBW (terabytes written) endurance rating. That matches other PCIe 5.0 flagships: 1,400 TBW works out to roughly 767 GB of writes every single day for five years, far beyond a typical 20 to 50 GB daily consumer workload. At 50 GB of writes per day you would need around 76 years to exhaust the rated endurance, so the NAND will outlast the warranty term by a wide margin and wear is not a realistic concern for gaming, streaming or creative work. The five-year term is the binding limit, and it matches the coverage on competing Gen5 drives. Lexar is an established brand with a global support and RMA network, which is reassuring on a 2 TB drive likely holding an operating system, games and projects at once, so keep your proof of purchase and register the drive if prompted.
Lexar NM1090 2 TB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 2 TB |
| Interface [?] | M.2 5.0 |
| Controller [?] | Silicon Motion SM2508 8 Channel |
| Memory type [?] | Micron 232-L TLC |
| DRAM [?] | Yes |
| Read speed (MB/s) [?] | 14000 |
| Write speed (MB/s) [?] | 13000 |
| Read IOPS [?] | 2100000 |
| Write IOPS [?] | 2000000 |
| Endurance (TBW) [?] | 1400 |
| MTBF (million hours) [?] | 1500000 |
| Warranty (years) [?] | 5 |
Verdict: Is the NM1090 Worth It in 2026?
The Lexar NM1090 Pro 2 TB is the model most buyers in this lineup should pick. It pairs the proven Silicon Motion SM2508 plus Micron 232-layer TLC platform with the family's full flagship 14,000 MB/s read and 13,000 MB/s write speeds, around 2.1 million random read IOPS, a 1,400 TBW rating and a five-year warranty, all at a competitive price that underpins its affordable-Gen5 reputation. Its strengths are genuine flagship Gen5 performance and a practical capacity in one drive. Its caveats are the usual Gen5 ones: it needs a PCIe 5.0 platform to shine, and it carries a premium over a comparable PCIe 4.0 drive. Choose it if you want a fast, spacious Gen5 drive at a sharp price; skip it if your board only supports PCIe 4.0.
+ Pros
- PCIe 5.0 Silicon Motion SM2508 platform
- Flagship 14,000 MB/s read and 13,000 MB/s write
- Up to 2,100,000 random read IOPS
- Micron 232-layer 3D TLC with DRAM cache
- 2 TB sweet-spot capacity
- 5-year warranty at a competitive Gen5 price
- Cons
- Needs a PCIe 5.0 platform to justify the speed
- Premium over a comparable PCIe 4.0 drive
- No heatsink on the base SKU
- Gen5 draws more power under load than a Gen4 drive
