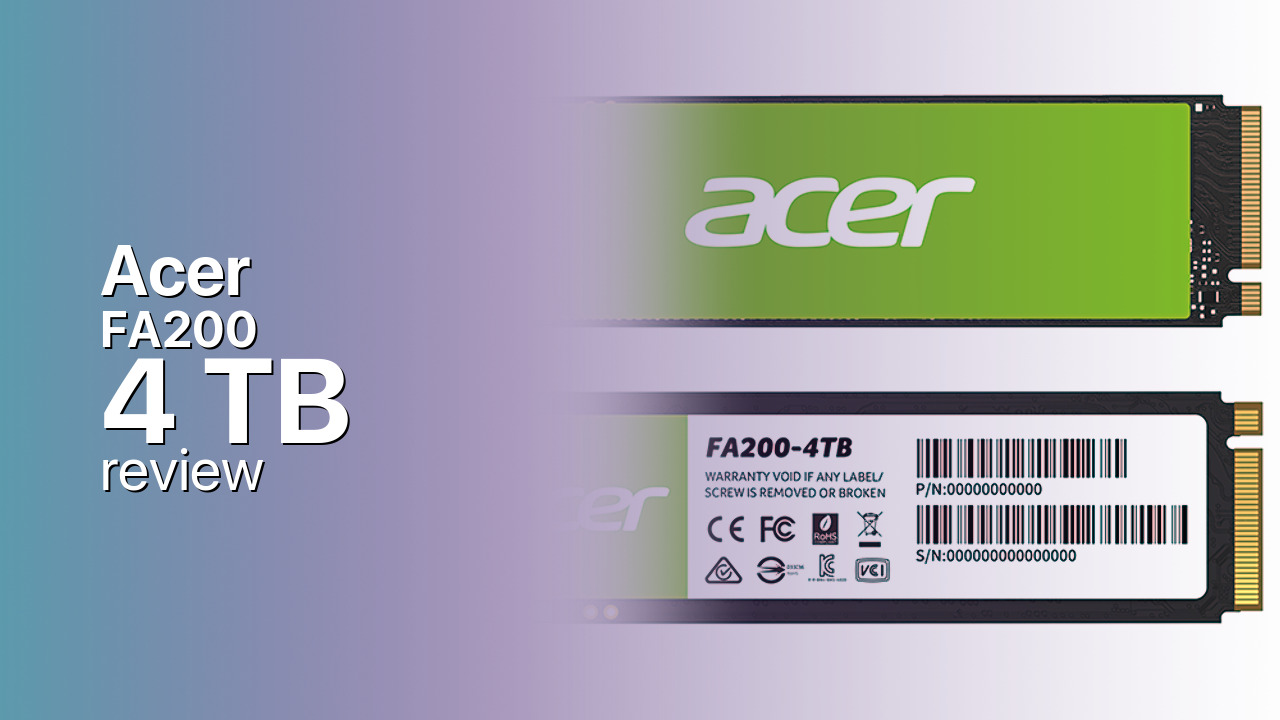

Acer FA200 4 TB: The Max-Capacity PCIe 4.0 QLC NVMe (2026)
The Acer FA200 4 TB is the top capacity of Acer's budget PCIe 4.0 QLC line, carrying the family's highest endurance and write-IOPS ratings as the exact SKU independent reviewers benchmarked hands-on.
Controller & Memory
The Acer FA200 4 TB is a budget PCIe 4.0 NVMe built on a DRAM-less platform from BIWIN, the OEM that actually manufactures the drive under the Acer brand under official licence. Inside, Maxiotech's MAP1602A four-channel controller, the F3C NVMe 2.0 variant internally called Falcon Lite, a TSMC 12nm part running an ARM Cortex-R5 quad-core CPU, pairs with YMTC's 232-layer Xtacking 3.0 QLC NAND over a PCIe 4.0 x4 link on a single-sided M.2 2280 module, and because there is no discrete DRAM the drive leans on the host system's memory through the HMB protocol for its mapping tables. A pre-applied graphene thermal pad handles cooling rather than a metal heatsink, and the single-sided layout keeps the 4 TB thin enough to fit slim laptops and a PlayStation 5 expansion slot without height-clearance issues.
Within the FA200 family, which also spans 500 GB, 1 TB and 2 TB siblings, the 4 TB is the capacity where QLC bulk-storage value peaks and the line's strongest endurance and random-write numbers live. Acer rates this 4 TB variant at 7,100 MB/s sequential reads, 6,100 MB/s writes, 1,000K random read IOPS and 820K random write IOPS, with a 2,000 TBW endurance rating that is double the 1,000 TBW of the 2 TB and the highest in the line, and the 820K write figure edges out the 2 TB's 800K to top the family on random writes. Notably, the retail box still prints the family-headline 7,200/6,200 MB/s rather than this 4 TB-specific 7,100/6,100, which The FPS Review flagged directly on the reviewed unit, a small gap but one buyers comparing the 4 TB against the flagship 2 TB should read past the packaging.
Compatibility is straightforward: the drive runs at full speed in any PCIe 4.0 desktop or laptop and drops to PCIe 3.0 rates in older slots, and it clears Sony's published PlayStation 5 requirement of an M.2 NVMe with at least 5,500 MB/s reads. The direct rivals are the same tier of budget DRAM-less PCIe 4.0 drives at 4 TB, including the Kingston NV2, Crucial P3 and WD Blue SN580, with the TLC-based SN580 the stronger pick for sustained writes. The FA200's real distinction is four terabytes of Maxiotech-plus-YMTC QLC at aggressive density-per-dollar, which makes the 4 TB a sensible large game-library, media archive or secondary drive rather than a primary scratch disk.
Storage Comparisons:
FA200 Performance & Benchmarks
On the 4 TB FA200, Acer rates sequential reads at 7,100 MB/s and sequential writes at 6,100 MB/s over a PCIe 4.0 x4 link, with random performance up to 1,000K IOPS on reads and 820K IOPS on writes. Those are slightly under the 1 TB and 2 TB flagships' 7,200/6,200 MB/s on the sequential side, but the 4 TB posts the highest random write IOPS in the family at 820K, edging the 2 TB's 800K, and that is the figure that matters most for an OS or game-library drive handling many small files. The FPS Review's hands-on test of this exact 4 TB SKU confirms the platform delivers real-world sequential read throughput above 7 GB/s, and characterises the drive as viable for large performance workloads despite its QLC heritage.
Acer FA200 4 TB vs M.2 4.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 4.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- WESTERN DIGITAL SN8100 1 TB: 14,900 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 1 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 2 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 4 TB: 14,500 MB/s read, 14,000 MB/s write
- Acer FA200 4 TB (this drive): 7,100 MB/s read, 6,100 MB/s write
For everyday desktop use, boot times, application launches and game loading, the drive feels responsive and the read bandwidth is more than enough; game load times are typically bounded by the CPU and asset decompression rather than storage, so the gap to a faster PCIe 4.0 drive is small in practice. The honest caveat is QLC behaviour under sustained writes: once the SLC cache fills, writes settle to the native YMTC QLC rate, which can drop well below 1,000 MB/s. The 4 TB carries the largest SLC cache in the line, which pushes that cliff furthest out, but it does not remove it, and the reviewer's summary is that the drive does well for gaming and secondary storage while showing real weakness in random 4K and small-office workloads from its QLC, DRAM-less nature. A TLC drive such as the WD Blue SN580 holds sustained writes better, and The FPS Review explicitly recommends pairing the FA200 with a motherboard M.2 heatsink rather than relying on the graphene pad alone.
Acer FA200 vs Competitors
See how the FA200 stacks up against other M.2 4.0 x 4 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
Acer covers the FA200 4 TB with a five-year limited warranty, ending early if the 2,000 TBW endurance rating is exceeded, whichever comes first. The 2,000 TBW figure is the top of a family that climbs from 250 TBW on the 500 GB through 500 TBW on the 1 TB and 1,000 TBW on the 2 TB up to 2,000 TBW on the 4 TB, scaling with capacity under the YMTC QLC endurance profile. At a typical consumer workload of around 20 GB of writes per day, the 4 TB would need more than 273 years to wear out the NAND, so in practice the warranty term expires long before the flash does; even a heavier 50 GB-per-day routine still clears 109 years. Acer rates the drive at up to 1.5 million hours MTBF, but that figure is a population-reliability statistic describing expected failures across a large fleet, not a lifespan guarantee for any single unit.
Acer FA200 4 TB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 4 TB |
| Interface [?] | M.2 4.0 x 4 |
| Controller [?] | Maxiotech MAP1602A 4 channel |
| Memory type [?] | YMTC 232-L, QLC |
| DRAM [?] | HMB |
| Read speed (MB/s) [?] | 7100 |
| Write speed (MB/s) [?] | 6100 |
| Read IOPS [?] | 1000000 |
| Write IOPS [?] | 820000 |
| Endurance (TBW) [?] | 2000 |
| MTBF (million hours) [?] | 1500000 |
| Warranty (years) [?] | 5 |
Verdict: Is the FA200 Worth It in 2026?
Buy the Acer FA200 4 TB as a large game-library, media archive or bulk secondary drive in a PCIe 4.0 desktop or laptop where four terabytes of QLC storage at aggressive density-per-dollar matters more than sustained write behaviour. Skip it for a primary video editing scratch disk, a DirectStorage-focused gaming build, or any workload with long sustained writes, where the QLC NAND's drop past the SLC cache will be felt even with the 4 TB's larger cache. The stronger alternative is a TLC drive like the WD Blue SN580 4 TB, which holds sustained writes far better for a modest premium, or the 2 TB FA200, which matches the family flagship on bandwidth for less outlay but halves endurance to 1,000 TBW. The verdict on the FA200 4 TB is a competent, no-frills QLC drive whose main draw is four terabytes of usable capacity at the top of the line's endurance and random-write range, and the one capacity independent reviewers have actually put on a test bench.
+ Pros
- 7,100 MB/s sequential reads on PCIe 4.0
- 820K random write IOPS, highest in line
- 2,000 TBW endurance, top of family
- Four-terabyte capacity for large libraries
- Single-sided M.2 2280 fits laptops and PS5
- Maxiotech MAP1602A with YMTC 232-layer NAND
- Five-year warranty, TBW-limited
- Cons
- QLC NAND slows sharply past SLC cache
- Box mislabels 4 TB speed as 7,200 MB/s
- DRAM-less, relies on host HMB
- Random 4K trails TLC rivals
- Graphene pad alone, no metal heatsink
