KingSpec VP101 1TB Review — Early PCIe 5.0 With a Built-In Fan (2026)
Quick answer
The KingSpec VP101 1TB makes sense for a desktop builder with a Gen5 motherboard, a free fan header, and an appetite for early-generation hardware — few drives at any tier arrive with active cooling preinstalled.
Read: 10000 MB/s Write: 10000 MB/s Endurance: 700 TBW Warranty: 3 years Interface: M.2 5.0 x 4

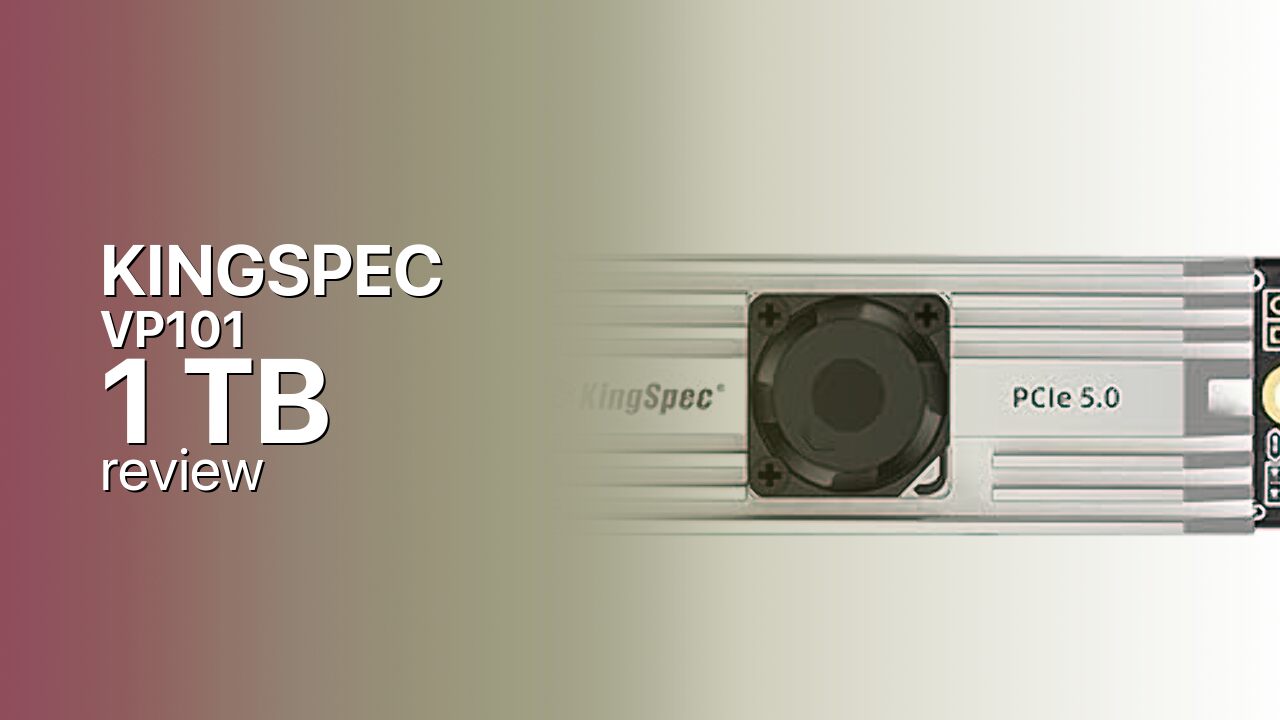

The KingSpec VP101 1TB was one of the first PCIe 5.0 SSDs to reach a rated 10,000 MB/s in both directions, and it ships with its own fan-cooled heatsink already installed.
Controller & Memory
The KingSpec VP101 1TB arrived in August 2023, in the first wave of consumer PCIe 5.0 drives, and its spec sheet still reads like an unusual piece of engineering: Gen5 bandwidth without a flagship's supporting cast. KingSpec's launch materials describe a Phison controller with an independent cache behind TLC NAND, and XDA's review identifies the platform as the Phison E26 that powered the entire first generation of PCIe 5.0 SSDs. The rated figure is 10,000 MB/s in both directions over PCIe 5.0 x4 with NVMe 2.0, and retailer listings put the DRAM buffer at roughly 1 GB per terabyte of capacity.
The range is deliberately small — just 1 TB and 2 TB, with endurance rated at 700 TBW and 1,400 TBW respectively — and every drive ships with the same party trick: an aluminum heatsink with a built-in cooling fan preinstalled. That cooler pushes total height to 20.5 mm, close to double a bare drive, and its fan draws power through a 4-pin connector with speed control via BIOS or software. Plan the fit accordingly: shrouded motherboard slots and compact cases may not close over it, and the assembly has no chance of fitting a PS5, whose clearance limit is 11.25 mm.
The audience is a desktop builder with a Gen5-capable motherboard, a free fan header, and a tolerance for first-generation hardware. The natural rivals are the Crucial T700 and Corsair MP700, which rate higher, carry five-year warranties, and offer far fuller retail documentation — though none of them include active cooling at this level. XDA's verdict on the platform was blunt: performance that holds up, from a brand whose support terms and documentation still have ground to cover.
Storage Comparisons:
VP101 Performance & Benchmarks
KingSpec rates the VP101 1TB at up to 10,000 MB/s sequential reads and writes over PCIe 5.0 x4, and the official spec page quotes ranges — 9,500 to 10,000 MB/s read, 8,500 to 10,000 MB/s write — that acknowledge real-world variance. XDA's review of the 1 TB model put measured numbers behind the claims: 9,613 MB/s read and 8,771 MB/s write in CrystalDiskMark's SEQ1M Q8T1 run, close to spec. IOMeter sustained-write testing showed the platform's character: around 8.6 GB/s with the drive nearly empty, settling between roughly 1.8 and 2.0 GB/s at half fill and beyond — the fast-burst, slower-steady-state pattern typical of first-generation Gen5 designs.
KINGSPEC VP101 1 TB vs M.2 5.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 5.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Kioxia Exceria Pro G2 2 TB: 14,900 MB/s read, 13,400 MB/s write
- Kioxia Exceria Pro G2 4 TB: 14,900 MB/s read, 13,700 MB/s write
- PNY XLR8 CS3250 1 TB: 14,900 MB/s read, 13,500 MB/s write
- PNY XLR8 CS3250 2 TB: 14,900 MB/s read, 14,000 MB/s write
- KINGSPEC VP101 1 TB (this drive): 10,000 MB/s read, 10,000 MB/s write
In daily use, Gen5-class reads translate into boots and level loads indistinguishable from a good PCIe 4.0 drive; the payoff appears in large file copies, project archives, and DirectStorage-style streaming workloads. Thermals are where the cooler earns its keep: XDA measured a 60 C peak under sustained load with the fan spinning — exactly the scenario the preinstalled cooler exists to manage. KingSpec publishes no rated IOPS for this model, so judge it on sequential throughput and sustained-write behavior rather than random-performance claims.
KINGSPEC VP101 vs Competitors
See how the VP101 stacks up against other M.2 5.0 x 4 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
KingSpec rates the VP101 1TB at 700 TBW of writes, with the 2 TB model doubling the budget to 1,400 TBW. Both capacities carry a 3-year warranty, whichever limit arrives first — a term that trails the five-year coverage the major Gen5 brands offer, and one of the clearest trade-offs of buying from a smaller maker. The endurance budget itself is generous: at a steady 20 GB of writes per day, 700 TBW stretches past nine decades, so the three-year clock, not the NAND, is the practical limit. The platform uses fifth-generation LDPC error correction and supports TRIM and S.M.A.R.T. monitoring. Warranty service runs through KingSpec's own support channels rather than a regional distributor network, which is worth factoring into a purchase on this brand.
KINGSPEC VP101 1 TB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 1 TB |
| Interface [?] | M.2 5.0 x 4 |
| Controller [?] | Phison E26 |
| Memory type [?] | 3D TLC |
| DRAM [?] | Yes |
| Read speed (MB/s) [?] | 10000 |
| Write speed (MB/s) [?] | 10000 |
| Read IOPS [?] | n/a |
| Write IOPS [?] | n/a |
| Endurance (TBW) [?] | 700 |
| MTBF (million hours) [?] | n/a |
| Warranty (years) [?] | 3 |
Verdict: Is the VP101 Worth It in 2026?
The KingSpec VP101 1TB makes sense for a desktop builder with a Gen5 motherboard, a free fan header, and an appetite for early-generation hardware — few drives at any tier arrive with active cooling preinstalled. Skip it if warranty length matters: three years against the five-year norm is a real cost, and XDA's verdict suggested the original price asked more patience than the platform deserved. The Crucial T700 is the obvious alternative, with faster rated speeds, five-year coverage, and a proven E26 platform that needs no fan. We would call the VP101 a functional early-Gen5 package: capable silicon, genuinely unusual cooling, and support terms that reflect a smaller brand still building its reputation.
+ Pros
- Rated up to 10,000 MB/s reads and writes
- Fan-cooled aluminum heatsink preinstalled
- 700 TBW endurance on the 1TB model
- DRAM cache sized at roughly 1 GB per TB
- XDA measured 9,613/8,771 MB/s in CrystalDiskMark
- PCIe 5.0 x4 with NVMe 2.0 compliance
- Cons
- 3-year warranty trails the 5-year Gen5 norm
- Cooler stands 20.5 mm tall and blocks some slots
- Fan draws power through a motherboard 4-pin header
- No PS5 fit; clearance limit is 11.25 mm
- NAND vendor never disclosed
