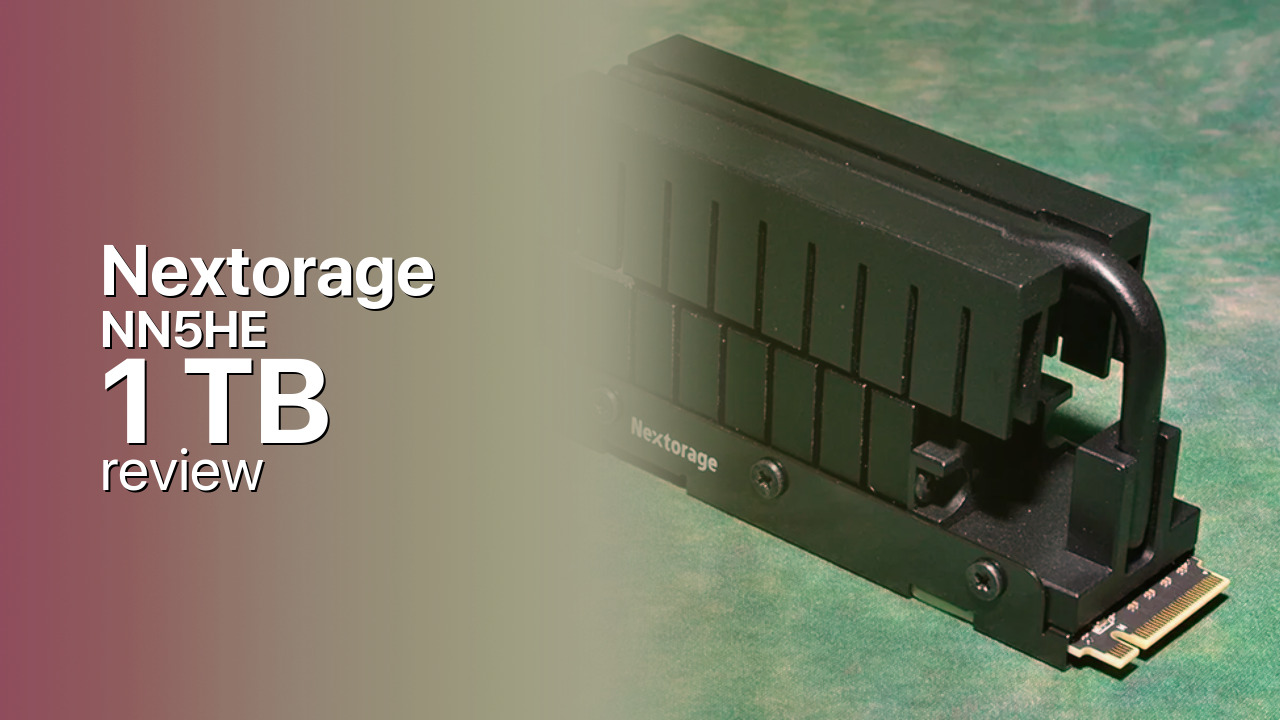

Nextorage NN5HE 1 TB: DRAM-less PCIe 5.0 flagship from a Sony spin-off (2026)
The Nextorage NN5HE 1 TB is a PCIe 5.0 x4 NVMe SSD from the G Series HE line, built on the Phison PS5031-E31T controller with 3D TLC NAND and a host-memory-buffer design, rated 10,200 MB/s reads and 8,300 MB/s writes with 600 TBW of endurance and a 5-year warranty.
Controller & Memory
Nextorage is a Japanese storage company spun off from Sony's recording-media division in 2019, and the NN5HE is its G Series HE (High-End) flagship for PCIe 5.0. Rather than the eight-channel Phison E26 used by many first-wave Gen5 drives, the NN5HE uses the Phison PS5031-E31T — a four-channel, DRAM-less controller built on TSMC's 7nm process. It relies on the host memory buffer (HMB), borrowing a small amount of system RAM for the address-mapping table instead of an on-board DRAM chip.
The practical effect of the E31T design is lower power draw and less heat than the E26 while still reaching the 10 GB/s class, thanks to fast 3D TLC NAND running at high interface speeds. The trade-off is the absence of a dedicated DRAM cache, which can affect sustained mixed-workload consistency relative to DRAM-equipped Gen5 drives such as the Crucial T700; for typical consumer and gaming use the difference is small. The drive uses a single-sided M.2 2280-S3-M layout, which helps cooling and fits compact systems.
This is a PC PCIe 5.0 SSD. It needs a Gen5 M.2 slot to reach its rated speeds; in a Gen4 slot it falls back to roughly 7 GB/s. It is not a PlayStation 5 drive — the PS5 uses PCIe 4.0 — so it should be considered for high-end desktops and workstations that have a free Gen5 socket and adequate M.2 cooling.
Storage Comparisons:
NN5HE Performance & Benchmarks
The NN5HE 1 TB is rated at 10,200 MB/s sequential reads and 8,300 MB/s sequential writes over PCIe 5.0 x4, with 1,300,000 random read IOPS and 1,500,000 random write IOPS. Those figures place it firmly in the 10 GB/s Gen5 class, near the top of consumer NVMe performance.
Nextorage NN5HE 1 TB vs M.2 5.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 5.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Kioxia Exceria Pro G2 2 TB: 14,900 MB/s read, 13,400 MB/s write
- Kioxia Exceria Pro G2 4 TB: 14,900 MB/s read, 13,700 MB/s write
- PNY XLR8 CS3250 4 TB: 14,900 MB/s read, 13,500 MB/s write
- Samsung 9100 Pro 4 TB: 14,800 MB/s read, 13,400 MB/s write
- Nextorage NN5HE 1 TB (this drive): 10,200 MB/s read, 8,300 MB/s write
In practice, the E31T's value is efficiency: it delivers Gen5-class throughput with markedly lower heat and power than eight-channel E26 designs, which reduces the chance of thermal throttling during sustained transfers when paired with a motherboard or aftermarket M.2 heatsink. As with all 1 TB drives, the SLC write cache is smaller than on higher capacities, so the longest sustained writes will eventually settle to native TLC speed — still very fast in absolute terms at this performance tier. For gaming and everyday desktop use, real-world differences from DRAM-equipped Gen5 rivals are minor.
Nextorage NN5HE vs Competitors
See how the NN5HE stacks up against other M.2 5.0 x 4 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
Nextorage covers the NN5HE with a 5-year warranty. The 1 TB model is rated for 600 TBW (terabytes written) and an MTBF of 1,500,000 hours, with coverage ending at whichever limit comes first: five years from purchase or 600 TBW of cumulative writes.
At a typical 30 GB of writes per day, reaching 600 TBW would take roughly 54 years, so the 5-year term is the binding limit for normal use. Even at a heavy 100 GB per day, the endurance rating spans about 16 years. For desktop and gaming workloads the TBW ceiling is not a practical concern; the warranty length is the limiting factor.
Nextorage NN5HE 1 TB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 1 TB |
| Interface [?] | M.2 5.0 x 4 |
| Controller [?] | Phison PS5031-E31T |
| Memory type [?] | 3D TLC |
| DRAM [?] | No |
| Read speed (MB/s) [?] | 10200 |
| Write speed (MB/s) [?] | 8300 |
| Read IOPS [?] | 1300000 |
| Write IOPS [?] | 1500000 |
| Endurance (TBW) [?] | 600 |
| MTBF (million hours) [?] | 1500000 |
| Warranty (years) [?] | 5 |
Verdict: Is the NN5HE Worth It in 2026?
The Nextorage NN5HE 1 TB is a strong DRAM-less PCIe 5.0 flagship: Phison E31T efficiency, 10,200/8,300 MB/s performance, a single-sided design that helps thermals, and a 5-year warranty with 600 TBW endurance, all from a Sony-derived Japanese brand with a reputation for quality.
It suits a high-end PCIe 5.0 desktop where Gen5 speed is wanted with lower heat and power than first-generation E26 drives. Buyers who want a dedicated DRAM cache and the absolute highest sustained figures may prefer an E26-based Gen5 drive like the Crucial T700, and anyone on a PCIe 4.0 platform should choose a Gen4 drive, since the NN5HE only reaches its rated speeds in a Gen5 slot.
+ Pros
- PCIe 5.0 x4 performance at 10,200/8,300 MB/s
- Phison PS5031-E31T runs cooler and lower-power than eight-channel E26 designs
- High random IOPS: 1.3M read / 1.5M write
- Single-sided M.2 2280 aids cooling and compact-system fit
- 5-year warranty with 600 TBW endurance
- Japanese (Sony spin-off) brand known for quality
- Cons
- DRAM-less (HMB) — no dedicated DRAM cache
- Requires a PCIe 5.0 slot for rated speeds; falls back to ~7 GB/s on Gen4
- Not compatible as a PlayStation 5 expansion drive (PS5 is Gen4)
- Gen5 drives need active or motherboard M.2 cooling under sustained load
- Limited Western retail availability
