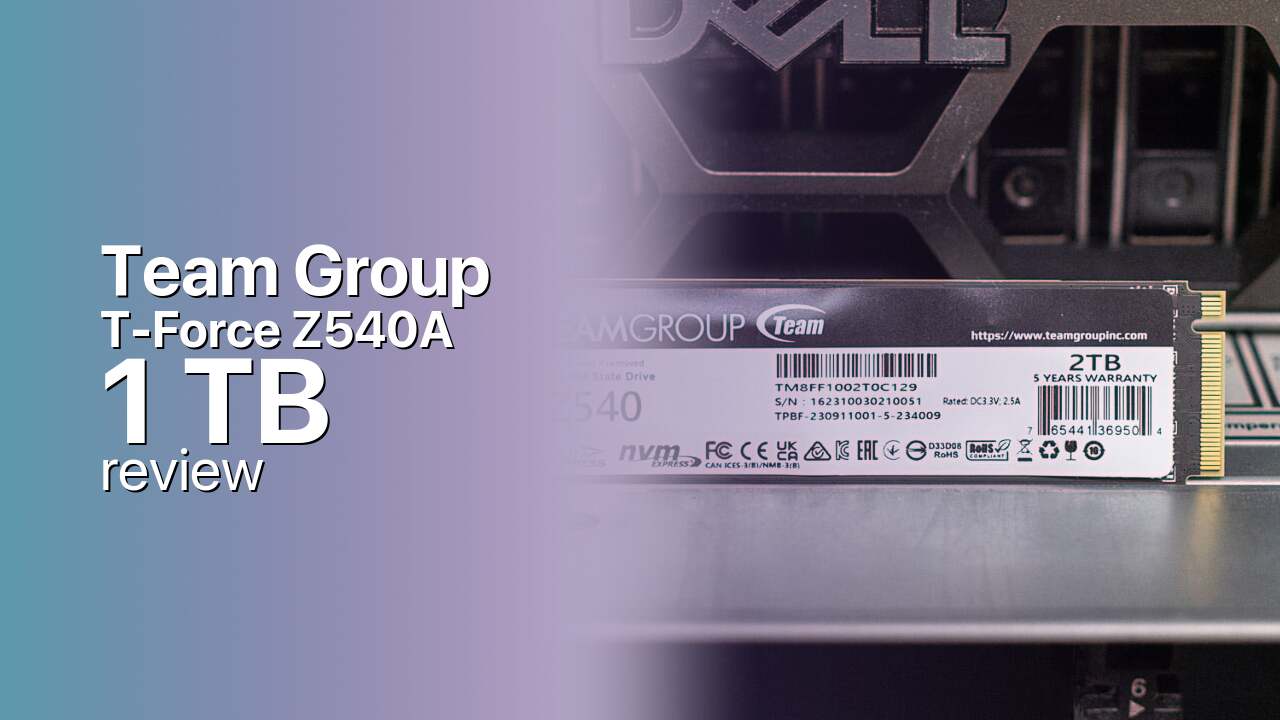

Team Group T-Force Z540A 1 TB: An InnoGrit Gen5 SSD (2026)

Name: Team Group T-Force Z540A 1 TB
Brand: Team Group
SKU: team-group-t-force-z540a-1-tb
Rating: 3.7 (66 reviews)

Posted on July 10, 2026 by Raymond Chen

The Team Group T-Force Z540A 1 TB is the InnoGrit IG5666 variant of Team Group's Gen5 line, delivering 12,400 MB/s reads on the same Micron 232-layer TLC recipe as the Phison-based Z540.

Team Group T-Force Z540A 1 TB: An InnoGrit Gen5 SSD

Controller & Memory

The Team Group T-Force Z540A 1 TB runs Team Group's second take on a PCIe 5.0 flagship, swapping the Phison PS5026-E26 of the original Z540 for InnoGrit's IG5666 eight-channel controller while keeping the same Micron 232-layer TLC NAND and a discrete DRAM buffer. On paper the headline numbers match the Phison sibling: 12,400 MB/s sequential reads, 11,800 MB/s writes, and up to 1.4 million random read IOPS, all over a PCIe 5.0 x4 link on a standard M.2 2280 module. The Z540A is the lower-volume of the two, and unlike the widely reviewed Z540 it has no dedicated English-language reviews yet, so buyers are effectively leaning on the spec sheet and the InnoGrit IG5666's track record in Team Group's own GC Pro and GE Pro drives.

Team Group sells the Z540A family across 1 TB, 2 TB, and 4 TB, all sharing the same peak read and write speeds; only endurance scales, linearly at roughly 600 TBW per terabyte, so the 1 TB carries a 600 TBW rating against 1200 TBW on the 2 TB and 2400 TBW on the 4 TB. Compatibility is the standard Gen5 story: the drive earns its keep only in a recent AMD 600-series or Intel 700-series desktop with a PCIe 5.0 M.2 slot, it is largely wasted in a laptop, and in a PlayStation 5 it runs at half speed because the console expansion slot is PCIe 4.0. Like every IG5666 and E26 drive, the Z540A ships bare with no heatsink in the box, and InnoGrit's Gen5 silicon runs hot enough under sustained writes that motherboard heatsink coverage is close to mandatory. The closest rivals are the Phison-E26 Z540 sibling itself, the Crucial T700 and Seagate FireCuda 540 on the same Gen5 mainstream tier, and anyone not chasing synthetic bandwidth will get matching real-world game load times from a cheaper PCIe 4.0 drive such as the Samsung 990 Pro.

Storage Comparisons:

Best Deal of 1 TB SSDs NVME Best PCIe 5.0 SSD Top 2 TB SSDs

T-Force Z540A Performance & Benchmarks

On the 1 TB T-Force Z540A, sequential reads are rated at 12,400 MB/s and writes at 11,800 MB/s over a PCIe 5.0 x4 link, with random performance rated up to 1,400,000 read IOPS and 1,500,000 write IOPS. Those are mainstream Gen5 numbers, within a few percent of the Phison-E26 Z540 sibling and broadly in line with what the InnoGrit IG5666 delivers in Team Group's GC Pro and GE Pro, which share the same controller.

Performance comparison

Team Group T-Force Z540A 1 TB vs M.2 5.0 peers

Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 5.0 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.

Corsair MP700 Pro XT 1 TB: 14,900 MB/s read, 14,200 MB/s write
Corsair MP700 Pro XT 2 TB: 14,900 MB/s read, 14,500 MB/s write
Corsair MP700 Pro XT 4 TB: 14,900 MB/s read, 14,400 MB/s write
Crucial T710 1 TB: 14,900 MB/s read, 13,800 MB/s write
Team Group T-Force Z540A 1 TB (this drive): 12,400 MB/s read, 11,800 MB/s write

In daily use the leap over PCIe 4.0 is real on paper and modest in practice. Game load times, usually bounded by the CPU and asset decompression rather than storage, barely move against a Samsung 990 Pro or WD Black SN850X. Where 12,400 MB/s earns its keep is on large sequential workloads: moving a 100 GB project folder, scrubbing 4K footage in a video editor, or feeding DirectStorage-enabled titles that stream textures straight from the SSD. Like every Gen5 drive, the Z540A leans on an SLC cache that absorbs writes at full speed until it fills, after which writes settle to the native Micron TLC rate and can fall further if the controller thermal-throttles. The 1 TB carries the smallest cache in the line, so under a long contiguous write it drops out of burst earliest, which is the main reason a video or scratch-disk workload justifies stepping up to the 2 TB. No independent benchmarks of the Z540A specifically exist at research time, so the honest summary is competent mainstream Gen5 rather than chart-topping.

Team Group T-Force Z540A vs Competitors

See how the T-Force Z540A stacks up against other M.2 5.0 drives in our database:

Compare with rival drives:

Crucial T700 1 TB Lenovo SL7000 50E 1 TB ADATA Mars 970 Blade 1 TB

Endurance, TBW & Warranty

Team Group covers the T-Force Z540A 1 TB with a five-year limited warranty, ending early only if the 600 TBW endurance rating is exceeded, whichever comes first. That 600 TBW figure is the entry point of a lineup that scales from 600 TBW on the 1 TB through 1200 TBW on the 2 TB to 2400 TBW on the 4 TB, holding roughly 600 TBW per terabyte of Micron 232-layer TLC. At a typical consumer workload of around 20 GB of writes per day, the drive would need more than 80 years to exhaust the NAND, so in practice the warranty term expires long before the flash does; even a heavier 50 GB-per-day routine still clears three decades. Team Group rates the drive at up to two million hours MTBF, but treat that figure as a population-reliability statistic describing expected failures across a large fleet, not a lifespan guarantee for any single unit.

Team Group T-Force Z540A 1 TB Specifications

Category	Value
Capacity [?]	1 TB
Interface [?]	M.2 5.0
Controller [?]	InnoGrit IG5666&lt8 Channel
Memory type [?]	Micron 232-L TLC
DRAM [?]	Yes
Read speed (MB/s) [?]	12400
Write speed (MB/s) [?]	11800
Read IOPS [?]	1400000
Write IOPS [?]	1500000
Endurance (TBW) [?]	600
MTBF (million hours) [?]	2000000
Warranty (years) [?]	5

Verdict: Is the T-Force Z540A Worth It in 2026?

Buy the Team Group T-Force Z540A 1 TB for a PCIe 5.0-capable desktop when the InnoGrit IG5666 variant is the one in stock, since on paper it matches the Phison-E26 Z540 it shares a spec sheet with. Skip it on a PCIe 4.0-only board, where the drive runs at half speed and a Samsung 990 Pro 1 TB matches its real-world responsiveness over the same slot, and pass on it for a PlayStation 5, whose expansion slot is PCIe 4.0 and cannot use the Gen5 bandwidth. The closest alternative is the Phison-E26 Team Group Z540 1 TB, which carries an actual independent review record and is the safer pick when both are available. The verdict on the Z540A 1 TB is a competent, no-surprises Gen5 boot drive whose only real distinction is the controller sitting underneath the same Micron TLC.

+ Pros

12,400 MB/s sequential reads over PCIe 5.0
600 TBW endurance on the 1 TB
InnoGrit IG5666 eight-channel Gen5 controller
Micron 232-layer TLC with DRAM buffer
1.4 million random read IOPS rated
Five-year warranty, TBW-limited

- Cons

No heatsink included in the box
No dedicated independent reviews yet
PCIe 5.0 speed wasted on PS5 and Gen4 boards
InnoGrit IG5666 runs hot under sustained load
1 TB has the smallest SLC cache in the line
Peak Gen5 speed invisible in most current games

3.7 / 5 · 66 votes

Buy this or similar SSD Storage:

Samsung 980 Pro 2 TB

-57% $165
List Price: $379.99

Buy on Amazon

INLAND Performance Plus 1 TB

$79.99

Buy on Amazon

Silicon Power 512GB NVMe SSD

$42.97

Buy on Amazon

Video Review

Best SSDs for PC & Playstation 5

Frequently Asked Questions

It is, though the gains over PCIe 4.0 are smaller than the spec sheet implies. The Team Group T-Force Z540A 1 TB hits 12,400 MB/s sequential reads, but game load times are usually bounded by CPU and asset decompression, so a Samsung 990 Pro or WD Black SN850X feels identical in most titles. The real upside is DirectStorage-enabled games that stream large textures straight from the SSD, and the 1 TB capacity fits a healthy game library. For a pure gaming rig on a PCIe 4.0 board, a cheaper Gen4 drive is the smarter call; the Z540A earns its place only on a PCIe 5.0 platform where the bandwidth is not bottlenecked.

Technically yes, but it is a poor fit. Sony requires an M.2 NVMe SSD recommending at least 5,500 MB/s sequential reads and fitting within 110 by 25 by 11.25 millimetres with a heatsink, and the Team Group T-Force Z540A 1 TB clears the speed and form-factor bar. The problem is that the PS5 expansion slot is PCIe 4.0, so this Gen5 drive runs at roughly half its rated speed and the PCIe 5.0 hardware is wasted. A PCIe 4.0 drive like the WD Black SN850X or Samsung 990 Pro delivers the same PS5 performance at lower cost, and a Gen5 drive is more hardware than the console usefully exploits.

The two share a spec sheet but not a controller. The Z540A uses InnoGrit's IG5666 eight-channel Gen5 controller, while the original Z540 runs Phison's PS5026-E26; both pair that controller with Micron 232-layer TLC NAND and a discrete DRAM buffer, and both hit 12,400 MB/s reads, 11,800 MB/s writes, and 1.4 million random read IOPS. Endurance and warranty match too, at 600 TBW on the 1 TB and a five-year term. The practical difference is coverage: the Phison Z540 has a full independent review record behind it, while the Z540A is the lower-profile variant you buy on spec when it is the one in stock.

The Team Group T-Force Z540A 1 TB carries a 600 TBW endurance rating, the entry point of a lineup that scales to 1200 TBW on the 2 TB and 2400 TBW on the 4 TB, holding roughly 600 TBW per terabyte of Micron 232-layer TLC. At around 20 GB of writes per day, a fairly heavy consumer workload, the drive would need more than 80 years to wear out the NAND, so the flash will outlast the five-year warranty by a wide margin. The 600 TBW figure matters less on a 1 TB boot drive than on the larger capacities, since the 1 TB is unlikely to see the write-heavy video or scratch-disk use that would stress it.

It does need active cooling, and the base Z540A ships without one in the box. InnoGrit's IG5666 controller runs hot under sustained writes, the same as Phison's E26, and a bare drive in a cramped slot can throttle, dropping sequential writes well below the rated 11,800 MB/s. Most PCIe 5.0 motherboards include a built-in M.2 heatsink that handles this fine, but builders without one should add a third-party heatsink. Avoid running any Gen5 drive bare and passive, since thermal throttling not only cuts burst speeds but can also shorten the controller's service life under heavy sustained loads.

The Team Group T-Force Z540A 1 TB uses InnoGrit's IG5666 eight-channel PCIe 5.0 NVMe controller, paired with Micron 232-layer TLC NAND and a discrete DRAM buffer. InnoGrit's IG5666 is the same Gen5 controller Team Group uses across its GA Pro, GC Pro, and GE Pro drives, so it has a real track record in the GC Pro and GE Pro, which TechPowerUp and Guru3D have reviewed. It is an alternative to the Phison PS5026-E26 that powers the original Z540, and on the spec sheet the two deliver nearly identical peak read, write, and IOPS numbers.

It works, though the 1 TB is the smaller option for a video workflow. The combination of 12,400 MB/s sequential reads, a discrete DRAM buffer, and PCIe 5.0 bandwidth helps with large media transfers and keeps timeline scrubbing responsive in DaVinci Resolve or Premiere Pro. The constraint on the 1 TB is the SLC cache: it is the smallest in the line, so a long 4K or 8K capture fills it fastest and writes then settle to the native Micron TLC rate. For a primary scratch disk, stepping up to the 2 TB or 4 TB Z540A, which hold sustained writes longer, is the better video-editing choice.
