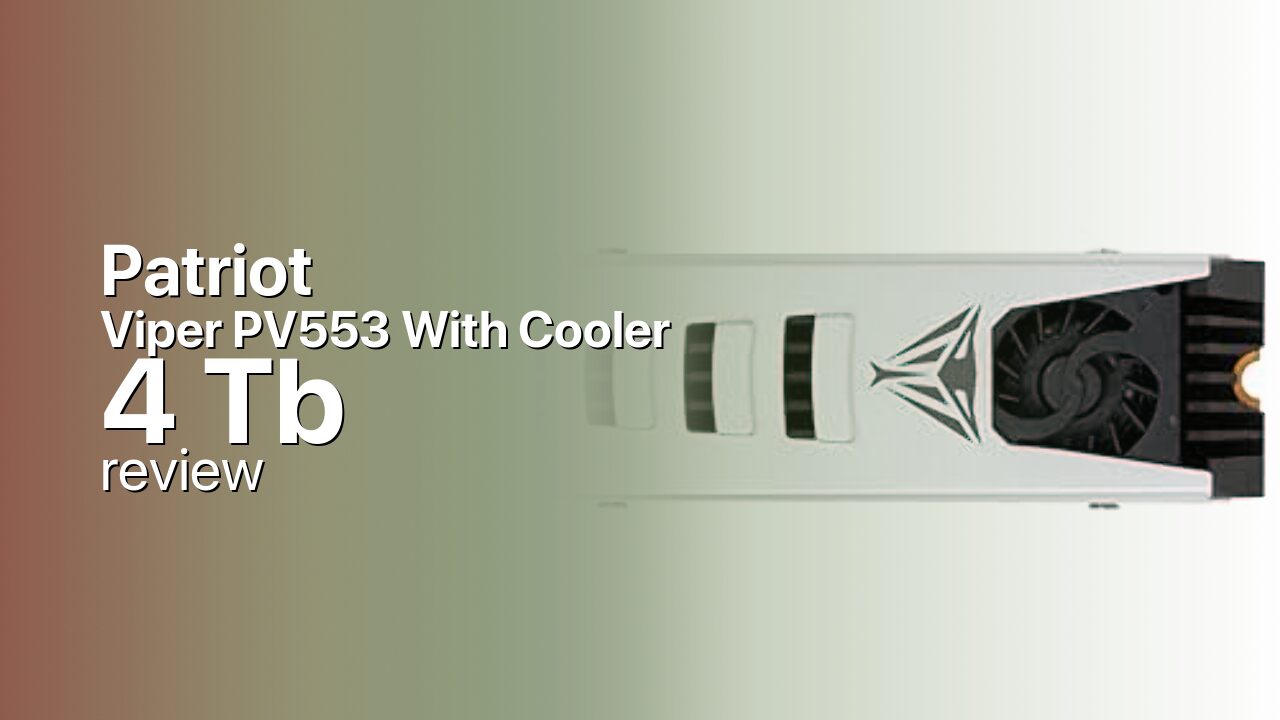

Patriot Viper PV553 4TB With Cooler — PCIe 5.0 SSD
The Patriot Viper PV553 4 TB is the largest capacity in Patriot's cooler-equipped PCIe 5.0 lineup, combining the Phison E26 controller with 4 TB of Micron 232-layer TLC and an integrated heatsink for sustained performance.
The 4 TB PV553 uses the Phison PS5026-E26 8-channel controller and Micron 232-layer 3D TLC NAND, the same platform as the 1 TB and 2 TB variants. The additional NAND die at 4 TB provide the best sustained write performance in the PV553 family — more parallel write channels keep native TLC write speeds higher after the SLC cache fills. The integrated cooler is particularly valuable at this capacity, where the combined heat of the E26 controller and additional NAND chips is at its highest.
A 4 TB PCIe 5.0 drive with an integrated cooler targets content creators, data professionals, and enthusiasts who want maximum storage and speed on a single M.2 slot without sourcing separate cooling. The 4 TB capacity is large enough to hold an OS, extensive game library, and active creative projects simultaneously, eliminating the need to manage multiple drives or partitions. The pre-installed cooler means the drive is ready to install without any additional thermal management hardware.
Competitors in the high-capacity PCIe 5.0 space include the Crucial T705 4 TB (E26, no cooler, 5-year warranty) and Patriot's own PV593 4 TB (SM2508, no cooler, runs cooler by design). The PV553's unique selling point is the integrated cooler combined with 4 TB capacity — a combination that eliminates the thermal management question for the E26 platform entirely. Against PCIe 4.0 alternatives like the Samsung 990 Pro 4 TB, the PV553 offers roughly double the sequential bandwidth at a higher price, making it best suited for workflows that genuinely benefit from PCIe 5.0 speeds.
✅ Storage Comparisons:
🚀 Performance and benchmarks
Rated at up to 12,400 MB/s sequential reads and 11,800 MB/s sequential writes, the 4 TB PV553 matches the rest of the lineup on peak numbers. Where the 4 TB model pulls ahead is sustained performance: more NAND die means a larger effective SLC cache and higher native TLC write speeds after the cache fills. The integrated cooler prevents the E26 controller from thermal throttling, which is critical at 4 TB where sustained writes generate the most heat.
Patriot Viper PV553 With Cooler 4 TB vs M.2 4.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 4.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Patriot Viper PV593 1 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 2 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 4 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV573 2 TB: 14,000 MB/s read, 12,000 MB/s write
- Patriot Viper PV553 With Cooler 4 TB (this drive): 12,400 MB/s read, 11,800 MB/s write
For large sequential transfers — the primary use case for a 4 TB PCIe 5.0 drive — the PV553 should consistently exceed 10,000 MB/s on a PCIe 5.0 platform. Video project moves, disk cloning, and game library migrations all benefit from the doubled bus bandwidth compared to PCIe 4.0. The integrated cooler ensures these speeds are sustained over long transfers rather than degrading as the controller heats up.
For random I/O and gaming, performance is comparable to other high-end NVMe drives. The 4 TB capacity's practical advantage is storage density, not access latency.
🖥️ Endurance and warranty
The PV553 4 TB carries a 3-year limited warranty with a listed endurance of 1.37 PBW (1,370 TBW). At a heavy write workload of 50 GB per day — typical for content creators working with large video files — that endurance translates to roughly 75 years of use. The integrated cooler is covered under the same warranty terms. The 3-year warranty is shorter than the 5-year terms offered by Crucial and Samsung on competing 4 TB drives, which is a notable consideration for a drive at this price point and capacity. For a 4 TB drive likely to hold significant amounts of data, the warranty length matters more than for a smaller boot drive — a drive failure after the warranty period means not just replacing the hardware but potentially losing stored data if backups are not maintained.
📊 Specs
| Category | Value |
|---|---|
| Capacity [?] | 4 TB |
| Interface [?] | M.2 4.0 x 4 |
| Controller [?] | Phison PS5026-E26 8 Channel |
| Memory type [?] | Micron 232-L TLC |
| DRAM [?] | Yes |
| Read speed (MB/s) [?] | 12400 |
| Write speed (MB/s) [?] | 11800 |
| Read IOPS [?] | 12400 |
| Write IOPS [?] | 11800 |
| Endurance (TBW) [?] | 1.3666666666667 |
| MTBF (million hours) [?] | 2000000 |
| Warranty (years) [?] | 3 |
Conclusion
The Patriot Viper PV553 4 TB with integrated cooler is a compelling all-in-one PCIe 5.0 solution for builders who want maximum capacity and speed without managing separate cooling. The E26 platform delivers proven 12,400 MB/s performance, the 4 TB capacity handles serious workloads, and the included cooler keeps thermals in check without extra parts. The 3-year warranty is the primary drawback — the Crucial T705 4 TB offers the same E26 platform with a 5-year warranty, though it requires a separate heatsink. If the convenience of an integrated cooler matters and the warranty length is acceptable, the PV553 4 TB is a strong plug-and-play choice for high-capacity PCIe 5.0 storage.
+ Pros
- 12,400 MB/s rated sequential reads
- Best sustained writes in the PV553 lineup
- Integrated cooler included — no separate heatsink needed
- 4 TB on a single M.2 2280 drive with PCIe 5.0
- Phison E26 8-channel controller with DRAM
- Micron 232-layer 3D TLC NAND
- Cons
- 3-year warranty vs 5 years on competitors
- Premium price for 4 TB PCIe 5.0 with cooler
- Integrated cooler adds height — verify motherboard clearance
- E26 draws more power than SM2508 alternatives
- High absolute cost compared to PCIe 4.0 4 TB drives
