TeamGroup T-Create Classic H514 2TB Review — The Creator Sweet Spot (2026)
Quick answer
The TeamGroup T-Create Classic H514 2TB is the capacity to pick in this line: full 14,200/13,300 MB/s ratings, 1,200 TBW of endurance and the DRAM-cached SM2508 platform, with both graphene and aluminum cooling options included.
Read: 14200 MB/s Write: 13300 MB/s Endurance: 1200 TBW Warranty: 5 years Interface: M.2 5.0 x 4
The TeamGroup T-Create Classic H514 2TB pairs full 14,200 MB/s Gen5 speed with 1,200 TBW endurance — the capacity where this creator drive makes the most sense.
Controller & Memory

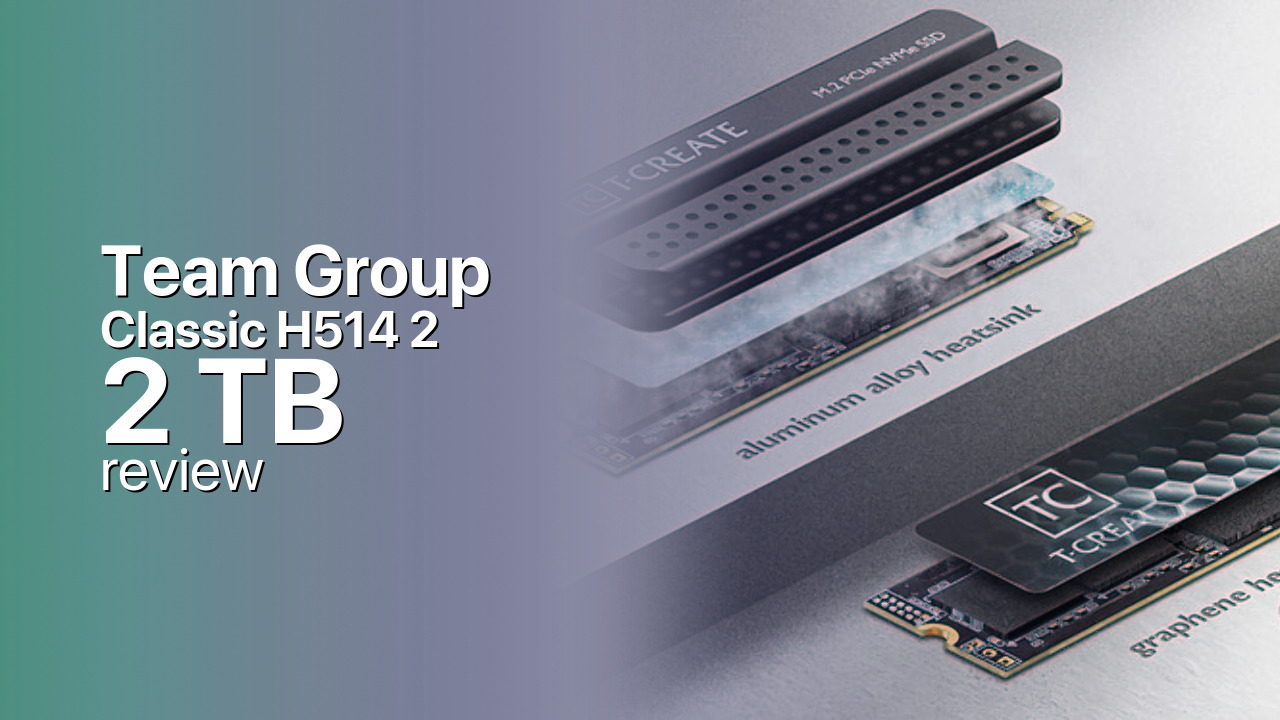

The TeamGroup T-Create Classic H514 2TB sits at the full-speed heart of TEAMGROUP's PCIe 5.0 creator line, announced in March 2026. It runs Silicon Motion's SM2508 — a 6 nm Gen5 controller with DRAM cache — behind 3D TLC NAND on a PCIe 5.0 x4, M.2 2280 board, and TEAMGROUP rates latency at 0.05 ms for reads and 0.015 ms for writes. Two cooling configurations exist: a patented ultra-thin graphene heat spreader measuring 3.7 mm and 7 g, or a matte-black aluminum heatsink at 11.7 mm and 28 g, both aimed at buyers who would rather not gamble on motherboard airflow.
This capacity is where the range's numbers peak alongside the 4TB: rated at 14,200 MB/s reads and 13,300 MB/s writes, versus 14,000/11,000 MB/s on the 1TB, with 1,200 TBW of endurance — double the entry model's 600 TBW budget. The line is also available in 1TB and 4TB. TEAMGROUP pitches it at video editors, image processors and local AI work, claiming enough throughput to hold language models from 7B to 175B parameters; 2TB is the first size where that claim feels practical rather than aspirational.
The competitive set is the Gen5 creator tier: Crucial's T705 (14,500/12,700 MB/s, Phison E26) and Samsung's 9100 Pro (14,800/13,400 MB/s). The H514 2TB rates slightly below both on paper but arrives with DRAM cache standard and a choice of two included cooling options — a combination competitors mostly reserve for costlier heatsink SKUs. Builders on PCIe 4.0 boards gain nothing here and should look at TEAMGROUP's own Classic I45 or equivalent Gen4 drives instead.
Storage Comparisons:
Classic H514 2 Performance & Benchmarks
TEAMGROUP rates the 2TB Classic H514 at 14,200 MB/s sequential reads and 13,300 MB/s writes — full parity with the 4TB flagship and a clear step over the 1TB's 11,000 MB/s write rating. No IOPS figure is published for this drive; the numbers TEAMGROUP emphasizes are the 0.05 ms read and 0.015 ms write latencies, presented as 19 and 27 percent lower than the PCIe 4.0 Classic I45. For creative work the rated writes are the headline: 13,300 MB/s moves a 100 GB video project in roughly eight seconds, and camera-card offloads stop being a coffee break.
Team Group Classic H514 2 2 TB vs M.2 5.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 5.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Kioxia Exceria Pro G2 2 TB: 14,900 MB/s read, 13,400 MB/s write
- Kioxia Exceria Pro G2 4 TB: 14,900 MB/s read, 13,700 MB/s write
- PNY XLR8 CS3250 1 TB: 14,900 MB/s read, 13,500 MB/s write
- PNY XLR8 CS3250 2 TB: 14,900 MB/s read, 14,000 MB/s write
- Team Group Classic H514 2 2 TB (this drive): 14,200 MB/s read, 13,300 MB/s write
The SM2508's DRAM cache is the quiet advantage in sustained duty. Any NVMe drive absorbs bursts in a pseudo-SLC cache and then drops to native flash speeds, but external DRAM keeps the mapping tables in their own buffer through long transfers, which is where multi-file exports and scratch-disk abuse usually expose DRAM-less Gen5 designs. Independent benchmark coverage of the H514 family remains scarce in mid-2026 — the line launched in March and early hands-on impressions have appeared ahead of full review suites — so treat these as manufacturer ratings for now. Thermally, TEAMGROUP specs a 0–70 °C operating window and includes real cooling on every unit, more than most bare-drive Gen5 competitors can say.
Team Group Classic H514 2 vs Competitors
See how the Classic H514 2 stacks up against other M.2 5.0 x 4 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
The 2TB Classic H514 is rated at 1,200 TBW of endurance under a 5-year limited warranty, whichever comes first — the JEDEC-basis rating doubles the 1TB model's 600 TBW budget and sits at half the 4TB's 2,400 TBW. In daily terms, a steady 50 GB of writes per day would take about 65 years to exhaust, so the warranty clock is the realistic ceiling. TEAMGROUP's spec sheet also lists a 1,000,000-hour MTBF, a population statistic rather than a promise for any single unit. Warranty service runs through TEAMGROUP's support channels with proof of purchase; as a March 2026 launch, the line's long-term RMA track record is still unproven, and terms can differ by region.
Team Group Classic H514 2 2 TB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 2 TB |
| Interface [?] | M.2 5.0 x 4 |
| Controller [?] | Silicon Motion SM2508 |
| Memory type [?] | 3D TLC |
| DRAM [?] | Yes |
| Read speed (MB/s) [?] | 14200 |
| Write speed (MB/s) [?] | 13300 |
| Read IOPS [?] | n/a |
| Write IOPS [?] | n/a |
| Endurance (TBW) [?] | 1200 |
| MTBF (million hours) [?] | n/a |
| Warranty (years) [?] | 5 |
Verdict: Is the Classic H514 2 Worth It in 2026?
The TeamGroup T-Create Classic H514 2TB is the capacity to pick in this line: full 14,200/13,300 MB/s ratings, 1,200 TBW of endurance and the DRAM-cached SM2508 platform, with both graphene and aluminum cooling options included. It fits creators moving multi-hundred-gigabyte video projects and builders hosting local AI models on a PCIe 5.0 board. Skip it on a PCIe 4.0-only system, where the Gen5 platform buys nothing over a strong Gen4 drive, and look at the Crucial T705 or Samsung 9100 Pro if higher rated sequential numbers or a longer review record matter more than included cooling. Within TEAMGROUP's own range it renders the 1TB a compromise and the 4TB a specialty — the 2TB is the default.
+ Pros
- 14,200 MB/s reads and 13,300 MB/s writes
- 1,200 TBW endurance with 5-year warranty
- Silicon Motion SM2508 controller with DRAM cache
- Full speed parity with the 4TB flagship
- 0.015 ms rated write latency
- Graphene or aluminum heatsink included
- Cons
- Needs a PCIe 5.0 board for the speed to matter
- Independent benchmark coverage still scarce
- No published IOPS rating
- Rated reads trail Crucial T705 and Samsung 9100 Pro
- March 2026 launch means no long-term reliability record
