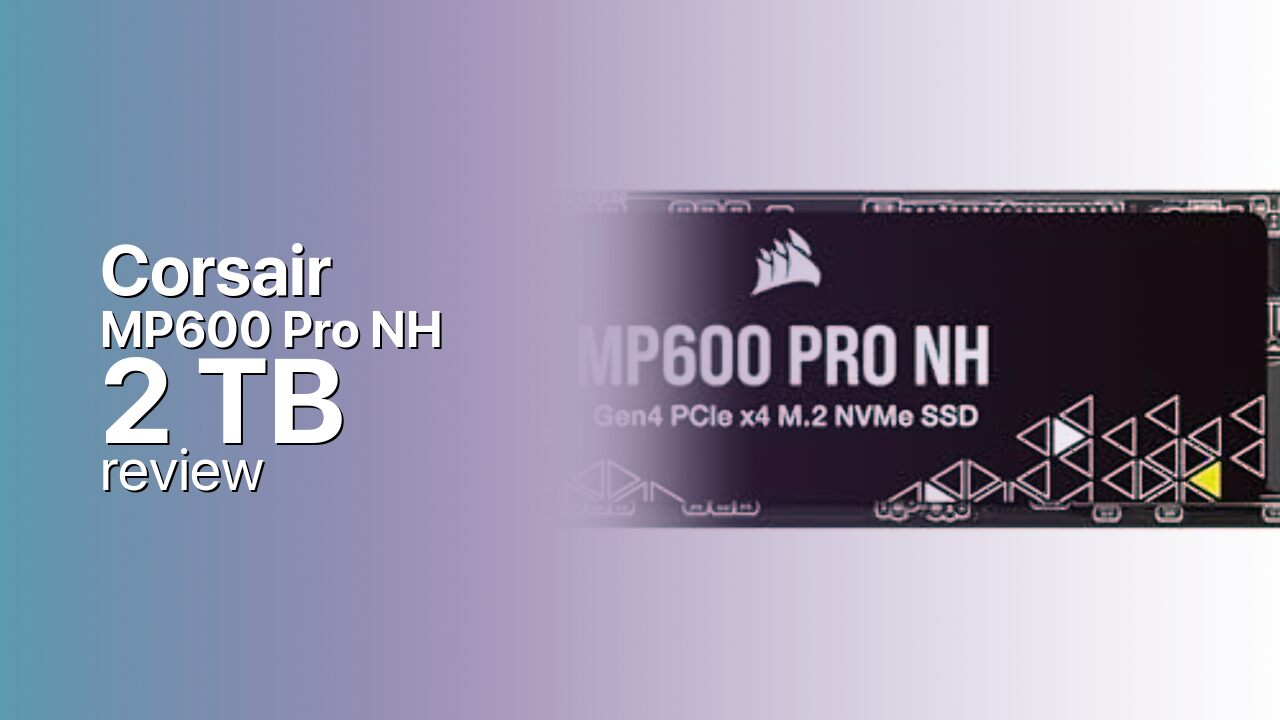

Corsair MP600 Pro NH 2TB: Heatsink-Free Flagship (2026)
The Corsair MP600 Pro NH 2TB is a DRAM-equipped PCIe 4.0 flagship rated for 7,000 MB/s reads, built without a heatsink for maximum compatibility.
Controller & Memory
The MP600 Pro NH 2TB runs an 8-channel Phison PS5018-E18 controller with Micron 176-layer 3D TLC NAND and onboard DRAM, putting it in Corsair's DRAM-equipped flagship tier rather than the budget or DRAM-less lines. The "NH" designation stands for no heatsink: Corsair sells the same core platform with a heatsink as the MP600 Pro XT, but the NH variant is built bare so it fits thin laptops, small-form-factor cases, and PS5 consoles without clearance issues.
Corsair sells the MP600 Pro NH in 500GB, 1TB, 2TB, 4TB, and 8TB capacities, one of the widest capacity spreads in its flagship lineup. The 2TB reaches the line's top random-IOPS rating at 1,000,000 read and 1,200,000 write, well above the smaller 1TB's 870,000/1,100,000, though Corsair's own spec sheet lists this capacity's sequential write at 5,700 MB/s rather than the 6,500 MB/s the 1TB and 4TB reach.
As a single-sided M.2 2280 drive with no bundled heatsink, the MP600 Pro NH 2TB competes against other DRAM-equipped PCIe 4.0 flagships like the Samsung 990 Pro and WD Black SN850X, and against Corsair's own DRAM-less MP600 Elite for buyers deciding whether onboard DRAM is worth the higher price at this capacity. Buyers who already have motherboard M.2 cooling in place, or don't need one at all for a laptop or console install, get the same core Phison E18 platform as the heatsinked MP600 Pro XT without paying for hardware they won't use.
Storage Comparisons:
MP600 Pro NH Performance & Benchmarks
The 2TB MP600 Pro NH is rated for 7,000 MB/s sequential reads and 5,700 MB/s sequential writes, with random performance rated at 1,000,000 IOPS reading and 1,200,000 IOPS writing, the line's peak random-performance rating. As a DRAM-equipped drive, it holds random-access performance more consistently under mixed workloads than DRAM-less rivals, since the onboard DRAM chip handles the flash translation layer's mapping tables directly rather than borrowing system RAM.
Corsair MP600 Pro NH 2 TB vs M.2 4.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 4.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Patriot Viper PV593 1 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 2 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 4 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV573 2 TB: 14,000 MB/s read, 12,000 MB/s write
- Corsair MP600 Pro NH 2 TB (this drive): 7,000 MB/s read, 5,700 MB/s write
Like other TLC drives, the MP600 Pro NH leans on an SLC write cache to hit its peak write number; once a sustained transfer outruns that cache, throughput drops toward native TLC write speed. Corsair doesn't publish the exact cache size for the 2TB capacity. For PS5 use, this drive's 7,000 MB/s read rating comfortably clears Sony's 5,500 MB/s minimum, and the no-heatsink design is specifically built to fit the PS5's storage expansion slot. For PC gaming, it's fast enough to make full use of DirectStorage-enabled titles without being the bottleneck.
Corsair MP600 Pro NH vs Competitors
See how the MP600 Pro NH stacks up against other M.2 4.0 x 4 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
The 2TB MP600 Pro NH carries a 1,400 TBW endurance rating and a full 5-year warranty. At a realistic consumer workload of 30 to 50GB written per day, 1,400 TBW takes roughly 77 to 128 years to exhaust, far beyond the 5-year warranty window and the drive's realistic service life. Corsair's official spec sheet for this capacity does not publish an MTBF figure, so treat any population-level reliability number from third-party listings as an estimate rather than a Corsair-confirmed spec. The 5-year warranty and DRAM-equipped design put this drive on equal footing with flagship rivals from Samsung and WD on paper endurance and coverage terms.
Corsair MP600 Pro NH 2 TB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 2 TB |
| Interface [?] | M.2 4.0 x 4 |
| Controller [?] | Phison PS5018-E18 8 Channel |
| Memory type [?] | Micron 176-L TLC |
| DRAM [?] | Yes |
| Read speed (MB/s) [?] | 7000 |
| Write speed (MB/s) [?] | 5700 |
| Read IOPS [?] | 1000000 |
| Write IOPS [?] | 1200000 |
| Endurance (TBW) [?] | 1400 |
| MTBF (million hours) [?] | 1800000 |
| Warranty (years) [?] | 5 |
Verdict: Is the MP600 Pro NH Worth It in 2026?
The MP600 Pro NH 2TB suits PC and PS5 buyers who want a DRAM-equipped flagship without a bulky heatsink, especially for thin laptops or console upgrades with tight clearance. Buyers who don't need onboard DRAM and want to save money should consider Corsair's own DRAM-less MP600 Elite instead, which rates similarly on read speed. Samsung's 990 Pro and WD's Black SN850X remain the closest direct DRAM-equipped rivals, generally with longer independent review histories. For a heatsink-free flagship with a full 5-year warranty and room for a large game library, the MP600 Pro NH 2TB's peak-rated random IOPS and 1,400 TBW endurance make it a strong pick.
+ Pros
- 1,000,000/1,200,000 IOPS, the line's peak rating
- Onboard DRAM for consistent random performance
- 1,400 TBW endurance at 2TB
- Full 5-year warranty
- No heatsink needed for PS5 or thin laptops
- 8-channel Phison controller
- Cons
- Sequential write rated lower than 1TB and 4TB
- No published MTBF figure from Corsair
- Write speed tapers once SLC cache fills
- Costs more than Corsair's own DRAM-less Elite line
- No official per-capacity cache size disclosed
