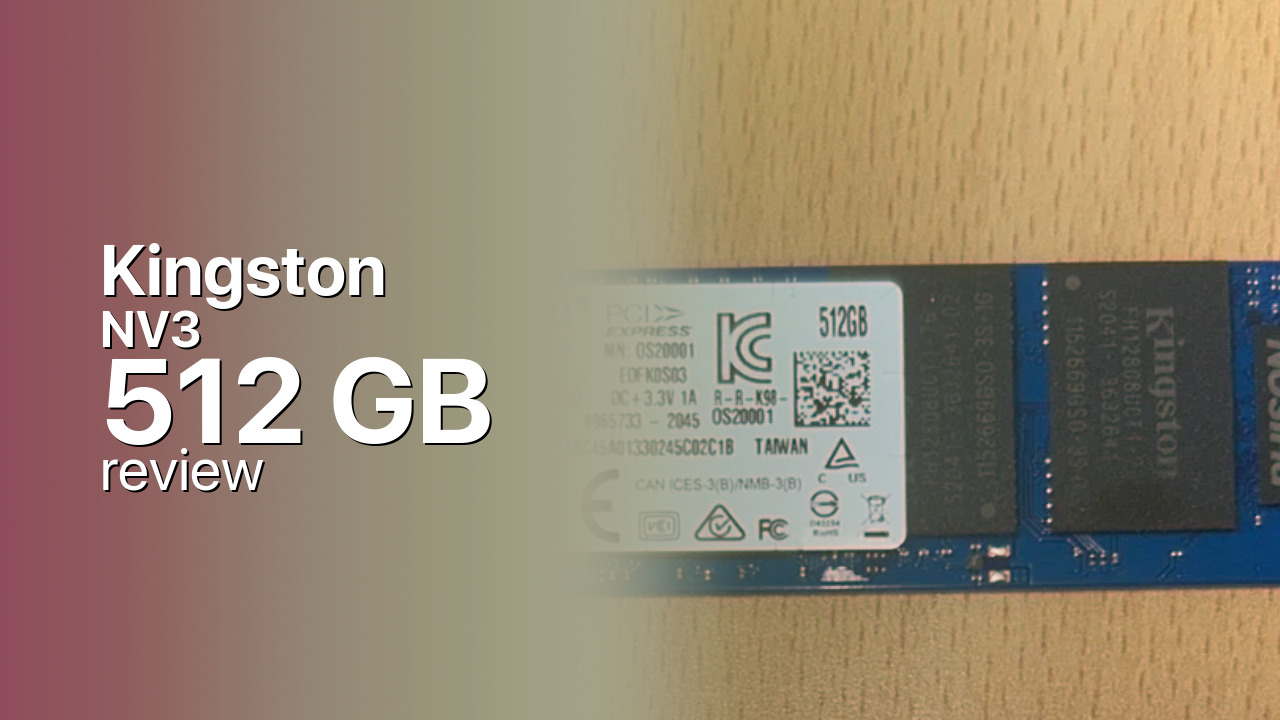

Kingston NV3 512GB: the entry capacity runs slower (2026)
The Kingston NV3 512GB is the entry capacity in Kingston's budget QLC lineup, running noticeably slower than its 1TB and larger siblings despite sharing the same NV3 name.
Controller & Memory
Kingston builds the NV3 around a DRAM-less controller paired with QLC NAND and Host Memory Buffer instead of dedicated DRAM. Reviewers have documented that Kingston ships different controller and NAND combinations under the same NV3 name depending on production batch - some units use a Silicon Motion SM2268-series controller, others a different chip entirely - so exact benchmark results can vary slightly between individual drives even at the same capacity.
Importantly, this 512GB capacity runs well behind the rest of the line: Kingston's own retail spec sheet lists 5,000 MB/s reads and just 3,000 MB/s writes here, versus 6,000/4,000 MB/s at 1TB and 6,000/5,000 MB/s at 2TB and 4TB. That gap is common on QLC drives with fewer NAND dies to stripe across at the smallest capacity, and it means the faster numbers often quoted for the NV3 line don't apply to this specific SKU. Endurance scales down accordingly too, at 160 TBW versus 320 TBW on the 1TB model, under a 3-year warranty.
Against DRAM-less budget rivals like the Crucial P3 Plus and WD Blue SN580 at the same 500GB capacity, the NV3's speed advantage narrows considerably compared to how it looks at 2TB, where independent reviewers have praised it more strongly.
Storage Comparisons:
NV3 Performance & Benchmarks
Kingston rates the NV3 512GB at up to 5,000 MB/s sequential reads and 3,000 MB/s sequential writes over PCIe 4.0 x4 - both notably lower than the 6,000/5,000 MB/s figures often associated with the NV3 line, which apply only to the 1TB and larger capacities. Random IOPS figures for this specific capacity aren't reliably confirmed, so treat any specific number seen elsewhere with caution.
Kingston NV3 512 GB vs M.2 4.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 4.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Patriot Viper PV593 1 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 2 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 4 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV573 2 TB: 14,000 MB/s read, 12,000 MB/s write
- Kingston NV3 512 GB (this drive): 5,000 MB/s read, 3,000 MB/s write
As a QLC, DRAM-less drive, the 512GB NV3 leans on an SLC write cache that's smaller in absolute terms than on the larger capacities, and independent testing of the line has found write speed drops sharply once that cache empties on sustained transfers. For a boot drive, light gaming, and general desktop use this is rarely noticeable, but buyers planning frequent large file transfers should budget for the 1TB or 2TB model instead, where both the sequential and cache-exhaustion numbers are considerably better and more in line with the drive's marketed reputation.
Kingston NV3 vs Competitors
See how the NV3 stacks up against other M.2 4.0 x 4 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
Kingston rates the NV3 512GB at 160 TBW of total write endurance, backed by a 3-year limited warranty. At a typical 20-50 GB of writes per day, that endurance budget lasts roughly 9 to 22 years before hitting the rated limit, comfortably beyond the drive's realistic service life even at the lowest TBW rating in the line. The MTBF rating is 2,000,000 hours, a statistical reliability figure describing failure rates across a large population of drives rather than a promise for any individual unit.
The 3-year warranty is shorter than the 5-year terms common among some competitors, though above average for a budget QLC drive at this price point.
Kingston NV3 512 GB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 512 GB |
| Interface [?] | M.2 4.0 x 4 |
| Controller [?] | Silicon Motion SM2268XT2 |
| Memory type [?] | Kioxia 162-L QLC |
| DRAM [?] | No |
| Read speed (MB/s) [?] | 5000 |
| Write speed (MB/s) [?] | 3000 |
| Read IOPS [?] | 6000000 |
| Write IOPS [?] | 5000000 |
| Endurance (TBW) [?] | 160 |
| MTBF (million hours) [?] | 2000000 |
| Warranty (years) [?] | 3 |
Verdict: Is the NV3 Worth It in 2026?
The Kingston NV3 512GB suits budget builders who want a boot drive or light gaming setup and don't need the faster numbers sometimes quoted for the NV3 line, since those figures only apply from 1TB up. It's a weaker choice for anyone expecting flagship-adjacent speed at this capacity, or for buyers doing frequent large file transfers, where the 3,000 MB/s write ceiling and smaller SLC cache show up quickly. Buyers who specifically want the NV3's stronger, independently-praised performance should step up to the 2TB model, which is what most reviews actually tested. Overall, the 512GB NV3 remains a reasonable budget pick backed by a solid 3-year warranty, provided expectations are set by its actual capacity-specific numbers.
+ Pros
- 5,000 MB/s sequential reads on PCIe 4.0
- 3-year warranty, above average for budget QLC
- 160 TBW endurance for the capacity
- 2,000,000-hour MTBF rating
- Cons
- Write speed drops to 3,000 MB/s, well below larger NV3 capacities
- QLC NAND has lower per-cell endurance than TLC
- DRAM-less design relies on Host Memory Buffer
- Components vary by production batch
