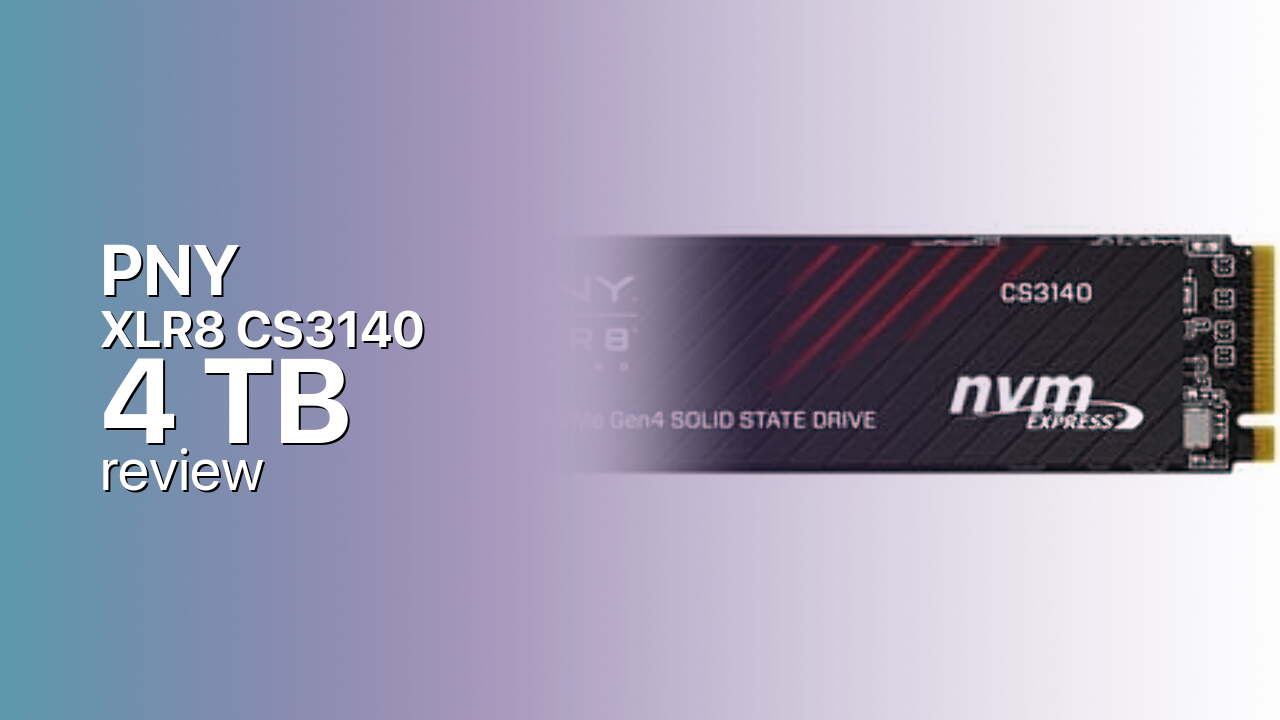

PNY XLR8 CS3140 4TB Review — Flagship Gen4 In Bulk (2026)
Quick answer
The PNY XLR8 CS3140 4TB fits buyers filling a 4 TB Gen4 slot on a budget — game hoarders, archive builders, and anyone whose priority is capacity with endurance headroom, since 3,000 TBW leads the 4 TB class.
Read: 7500 MB/s Write: 6850 MB/s Endurance: 3000 TBW Warranty: 5 years Interface: M.2 4.0 x 4
The PNY XLR8 CS3140 4TB stretches the E18 flagship formula to 3,000 TBW — mass Gen4 storage that keeps the family's full 7,500/6,850 MB/s ratings.
Controller & Memory
The PNY XLR8 CS3140 4TB is the bulk-storage extension of PNY's Gen4 flagship line without diluting the formula: a Phison PS5018-E18 eight-channel controller, Micron 96-layer TLC NAND, and a DRAM cache that scales with capacity, all on an M.2 2280 board with TCG Pyrite security support. Rated at 7,500 MB/s sequential reads and 6,850 MB/s writes over PCIe 4.0 x4, the 4 TB carries the family's top write rating — notably faster on paper than the 1 TB model, which manages 5,650 MB/s. Endurance lands at 3,000 TBW, triple the 1 TB's 700 TBW, under a five-year limited warranty.
Capacity positioning matters here. The 4 TB model is the largest SKU PNY currently lists for the line, a drive built for game libraries, video archives and workstation scratch duty rather than boot-drive modesty. It ships as a bare drive, so a heatsink — the CS3140 line includes HS variants — or an aftermarket cooler is a required purchase for sustained workloads and console installs alike.
Against the competition, the numbers sit just behind the segment's pace-setters: the WD Black SN850X 4TB rates 7,300/6,600 MB/s with 2,400 TBW, and Samsung's 990 Pro 4TB tops the class at 7,450/6,900 MB/s — also with 2,400 TBW. The CS3140's counterargument is endurance: 3,000 TBW beats both. Review consensus has been consistent since launch — Tom's Hardware called the drive speedy mediocrity, praising consistency while placing it below class leaders, and ServeTheHome credited clear improvement over the CS3040 while criticizing PNY's warranty handling. A competent bulk drive, then, with one genuine spec-sheet advantage.
Storage Comparisons:
XLR8 CS3140 Performance & Benchmarks
PNY rates the 4 TB CS3140 at 7,500 MB/s sequential reads and 6,850 MB/s writes, with a two-million-hour MTBF claim in its marketing (the spec table on PNY's own page says 1.6 million — the company's materials disagree). Rated random IOPS figures are notably absent: NASCompares transcribed PNY's official table and found the IOPS column unpublished for every capacity, an omission that says something about where the drive sits in the E18 hierarchy.
PNY XLR8 CS3140 4 TB vs M.2 4.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 4.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Patriot Viper PV593 1 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 2 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 4 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV573 2 TB: 14,000 MB/s read, 12,000 MB/s write
- PNY XLR8 CS3140 4 TB (this drive): 7,500 MB/s read, 6,850 MB/s write
In use, 7,500 MB/s reads are the PCIe 4.0 ceiling, indistinguishable from any other E18 flagship in game loads and OS boots; DirectStorage titles and large texture streaming benefit from the full Gen4 pipeline. The DRAM cache and TLC NAND keep write behavior honest through the pseudo-SLC cache's span, but sustained transfers past the cache will settle below the 6,850 MB/s headline — at 4 TB, transfers large enough to hit that wall are the norm rather than the exception, so the drop is worth knowing about for video-editing and backup duty.
Reviewer consensus fills the gaps the datasheet leaves: Tom's Hardware found the drive consistent, with good random-write latency but below-average showings in some gaming benchmarks, while ServeTheHome judged it a clear step up from PNY's CS3040. No reviewer ranked it ahead of the SN850X or 990 Pro — the ratings here are for class-competitive speed, not class-leading speed.
PNY XLR8 CS3140 vs Competitors
See how the XLR8 CS3140 stacks up against other M.2 4.0 x 4 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
PNY backs the CS3140 4TB with a five-year limited warranty or 3,000 TBW of writes, whichever arrives first — the endurance figure alone beats the 2,400 TBW of the SN850X 4TB and 990 Pro 4TB. At a demanding 50 GB of writes per day, 3,000 TBW stretches past 164 years, so the warranty term is the practical limit for any buyer. MTBF is listed as up to two million hours in PNY's marketing and 1.6 million in its spec table; either way it is a population statistic, not a promise about an individual drive. Support runs directly through PNY's US-based technical support, which is convenient on paper — though ServeTheHome's review openly criticized the company's warranty handling, a caution worth weighing before relying on a fast RMA.
PNY XLR8 CS3140 4 TB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 4 TB |
| Interface [?] | M.2 4.0 x 4 |
| Controller [?] | Phison PS5016-E18 8 Channel |
| Memory type [?] | Micron 96-L TLC |
| DRAM [?] | Yes |
| Read speed (MB/s) [?] | 7500 |
| Write speed (MB/s) [?] | 6850 |
| Read IOPS [?] | 7500000 |
| Write IOPS [?] | 6850000 |
| Endurance (TBW) [?] | 3000 |
| MTBF (million hours) [?] | 2000000 |
| Warranty (years) [?] | 5 |
Verdict: Is the XLR8 CS3140 Worth It in 2026?
The PNY XLR8 CS3140 4TB fits buyers filling a 4 TB Gen4 slot on a budget — game hoarders, archive builders, and anyone whose priority is capacity with endurance headroom, since 3,000 TBW leads the 4 TB class. Skip it if you want the segment's best sustained and random performance, where Samsung's 990 Pro 4TB is the reference and the WD Black SN850X 4TB is the usual recommendation. PNY's drive holds its own on ratings and loses on polish: no published IOPS, bare packaging, and a warranty process reviewers have criticized. When the CS3140 4TB prices visibly below the SN850X, its endurance advantage makes it an easy call; at parity, the rivals' track records decide it.
+ Pros
- 7,500/6,850 MB/s Gen4 ratings at 4TB
- 3,000 TBW endurance leads the 4TB class
- Phison E18 controller with DRAM cache
- TCG Pyrite security support
- 5-year limited warranty
- Cons
- Heatsink not included on the bare drive
- No official random IOPS rating
- Reviewer criticism of PNY's warranty handling
- Older 96-layer TLC against newer 176-layer rivals
