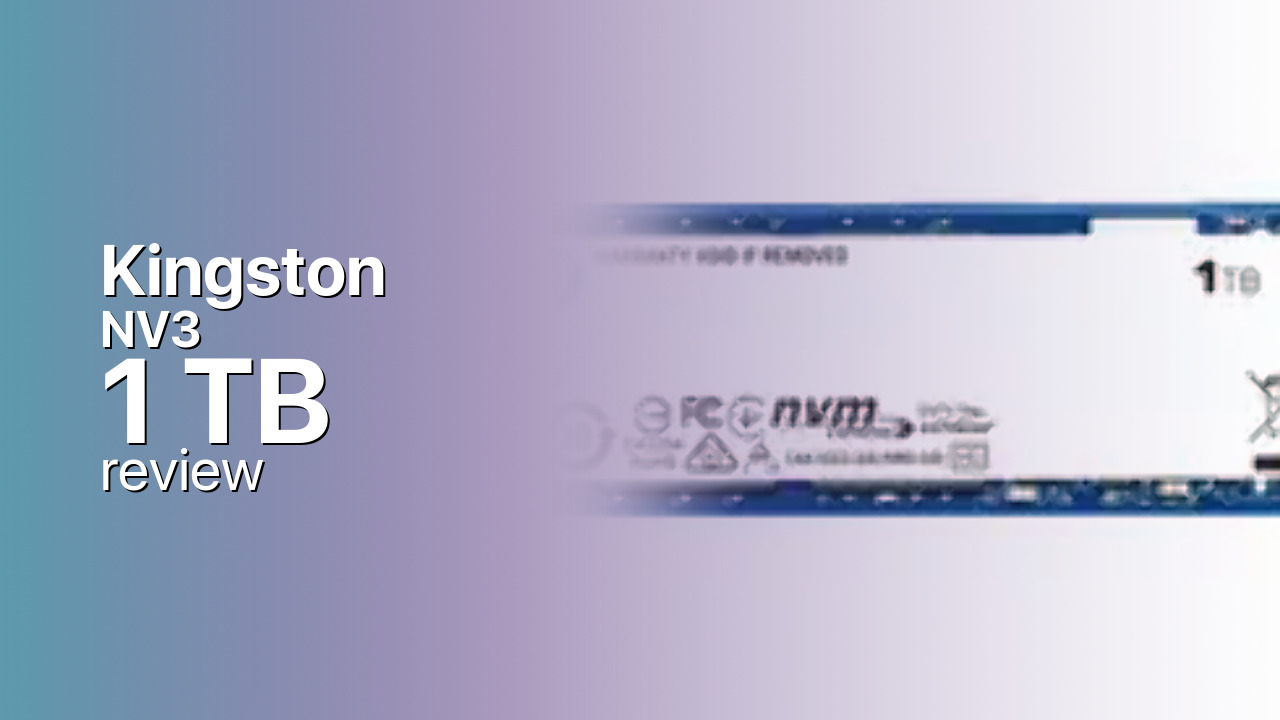

Kingston NV3 1TB: the mainstream sweet-spot capacity (2026)
The Kingston NV3 1TB sits at the mainstream sweet spot of Kingston's budget QLC lineup, delivering a meaningful speed step up from the 512GB model at a still-accessible price.
Controller & Memory
Kingston builds the NV3 around a DRAM-less controller paired with QLC NAND and Host Memory Buffer instead of dedicated DRAM, in the standard M.2 2280 form factor connected over PCIe 4.0 x4. Reviewers have documented that Kingston ships different controller and NAND combinations under the same NV3 name depending on production batch, so exact benchmark results can vary slightly between individual drives even at the same capacity - a known quirk of this budget line rather than a defect in any single unit.
At 1 TB, the NV3 is rated at 6,000 MB/s reads and 4,000 MB/s writes, a real step up from the 512GB model's 5,000/3,000 MB/s, though still short of the 5,000 MB/s write ceiling reached at 2TB and 4TB. Endurance scales to 320 TBW at this capacity, double the 512GB model's 160 TBW, under a 3-year warranty that holds across the whole line regardless of which specific hardware revision a buyer happens to receive.
Against DRAM-less budget rivals like the Crucial P3 Plus and WD Blue SN580 at the same 1TB capacity, the NV3 competes well on price while independent reviewers have specifically praised its real-world performance, particularly at the 2TB capacity that most review units tested rather than this specific 1TB SKU.
Storage Comparisons:
NV3 Performance & Benchmarks
Kingston rates the NV3 1TB at up to 6,000 MB/s sequential reads and 4,000 MB/s sequential writes over PCIe 4.0 x4, a genuine improvement over the 512GB model's reduced numbers and enough to comfortably outrun any SATA drive or older PCIe 3.0 competitor. Random IOPS figures for this specific capacity aren't reliably confirmed, so treat any specific number seen elsewhere with some caution rather than as a guaranteed figure.
Kingston NV3 1 TB vs M.2 4.0 x 4 peers
Switch between sequential throughput and random IOPS to see how this drive stacks up against other M.2 4.0 x 4 SSDs in our database. The highlighted bar is the drive on this page — click any other bar to open that drive.
- Patriot Viper PV593 1 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 2 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV593 4 TB: 14,500 MB/s read, 14,000 MB/s write
- Patriot Viper PV573 2 TB: 14,000 MB/s read, 12,000 MB/s write
- Kingston NV3 1 TB (this drive): 6,000 MB/s read, 4,000 MB/s write
As a QLC, DRAM-less drive, the NV3 leans on an SLC write cache that fills faster than on a TLC-based rival; independent testing of the line has found write speed drops sharply once that cache empties on large sustained transfers, sometimes to well under 1,000 MB/s. For gaming, everyday computing, and moderate file transfers this is rarely an issue at 1TB, where the larger cache than the 512GB model gives more headroom before the drop-off becomes noticeable, and random-access responsiveness stays solid throughout typical desktop workloads.
Kingston NV3 vs Competitors
See how the NV3 stacks up against other M.2 4.0 x 4 drives in our database:
Compare with rival drives:
Endurance, TBW & Warranty
Kingston rates the NV3 1TB at 320 TBW of total write endurance, backed by a 3-year limited warranty. At a typical 20-50 GB of writes per day, that endurance budget lasts roughly 18 to 44 years before hitting the rated limit, comfortably beyond the drive's realistic service life. The MTBF rating is 2,000,000 hours, a statistical reliability figure describing failure rates across a large population of drives rather than a promise for any individual unit.
The 3-year warranty is shorter than the 5-year terms some competitors offer, though it's consistent across every capacity in the NV3 line.
Kingston NV3 1 TB Specifications
| Category | Value |
|---|---|
| Capacity [?] | 1 TB |
| Interface [?] | M.2 4.0 x 4 |
| Controller [?] | Silicon Motion SM2268XT2 |
| Memory type [?] | Kioxia 162-L QLC |
| DRAM [?] | No |
| Read speed (MB/s) [?] | 6000 |
| Write speed (MB/s) [?] | 4000 |
| Read IOPS [?] | 6000000 |
| Write IOPS [?] | 5000000 |
| Endurance (TBW) [?] | 320 |
| MTBF (million hours) [?] | 2000000 |
| Warranty (years) [?] | 3 |
Verdict: Is the NV3 Worth It in 2026?
The Kingston NV3 1TB suits budget-focused gamers and everyday users who want a genuine PCIe 4.0 speed improvement over the entry 512GB model without paying for the top-tier 2TB and 4TB capacities. It's a weaker choice for buyers doing frequent large sustained writes, where QLC's smaller effective cache margin and the 4,000 MB/s write ceiling show up sooner than on a TLC-based rival. Buyers who want the NV3's strongest independently-reviewed performance should consider the 2TB model instead, which most reviews actually tested. Overall, the NV3 1TB is a solid mainstream pick that balances price, capacity, and genuinely usable speed.
+ Pros
- 6,000 MB/s sequential reads on PCIe 4.0
- 320 TBW endurance for the capacity
- 3-year warranty across the whole NV3 line
- 2,000,000-hour MTBF rating
- Meaningful speed step up from the 512GB model
- Cons
- 4,000 MB/s writes trail the 2TB/4TB capacities
- QLC NAND has lower per-cell endurance than TLC
- DRAM-less design relies on Host Memory Buffer
- Components vary by production batch
